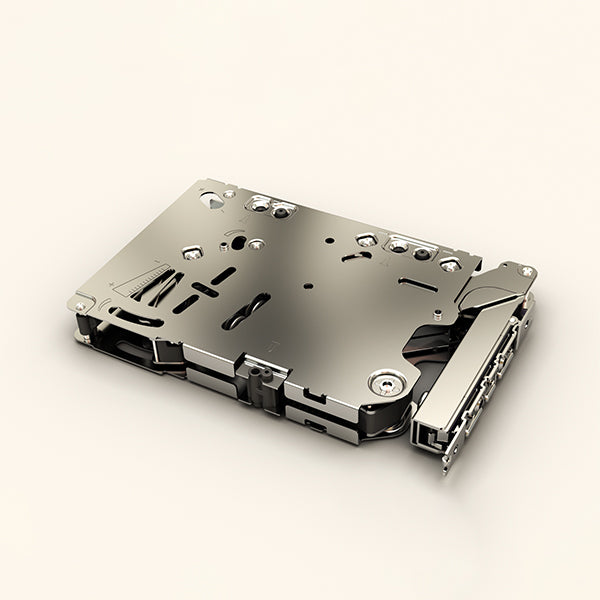

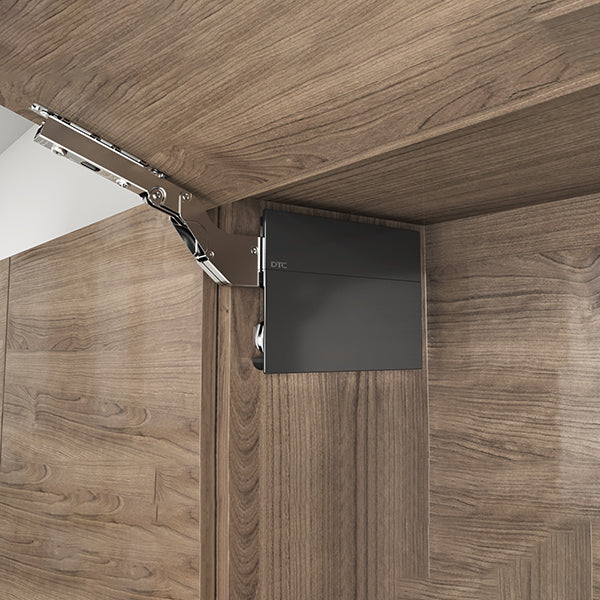

DTC - Top Stays Lifting System

Product Features:

• Opening Angle 107°/100° – Wide, comfortable access to cabinet interiors
• For Large Cabinets – Supports cabinet widths up to 1800mm and heights from 250–700mm
• Door Thickness Compatibility – Fits doors 16–28mm thick
• 3D Door Adjustment – Precise alignment with height, depth, and side adjustment (±2mm each)
• Easy to Open & Stays in Position – Door remains at any desired angle for safe, convenient access
• Adjustable Soft-Closing Speed – Customize the closing motion for maximum comfort and safety
• Adjustable Opening & Hovering Forces – Tailor the lift to door weight and user preference
• Tool-Free Assembly & Removal – Fast, hassle-free installation and maintenance

Technical Specifications:

• Model: DTC Top Stays
• Opening Angle: 107° / 100°
• Cabinet Width: Up to 1800mm
• Cabinet Height: 250–700mm
• Door Thickness: 16–28mm
• 3D Adjustment: Height, depth, and side ±2mm
• Soft Close: Adjustable speed
• Opening/Hovering Force: Adjustable
• Installation: Tool-free

Ideal Applications:

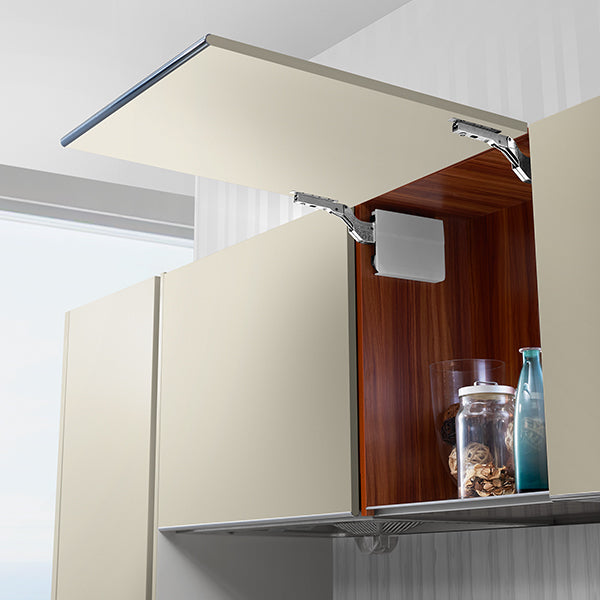

• Overhead kitchen cabinets
• Living room wall cabinets
• Office storage units
• Commercial display cabinets
• Custom cabinetry requiring easy lift-up access

Installation & User Benefits:

Effortless opening – Minimal force required, ideal for users of all ages

Stays open at any position – No more slamming or accidental closing

Fully adjustable – Perfect alignment and user comfort

Tool-free system – Quick installation and removal for cleaning or adjustment

Premium build – Designed for long-term durability and smooth operation
